Item #
  • Simple installation, setup and calibration
  • No plumbing required
  • No false tripping - Guaranteed!
  • Models for all voltage supplies
  • No additional controls or wiring for large 208V/230V or 3 phase pumps
  • Alarm output
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    PSP20-10-25
    Automatic Pump Shutoff Device for 120V .4-25 FLA 1-ph applications
    1 $1,421.17
    PSP20-10-50
    Automatic Pump Shutoff Device for 120V 26-50 FLA 1-ph applications
    1 $1,320.99
    PSP20-20-25
    Automatic Pump Shutoff Device for 208/230V .4-25 FLA 1/3-ph applications
    1 $1,421.17
    PSP20-20-50
    Automatic Pump Shutoff Device for 208/230V 26-50 FLA 1/3-ph applications
    1 $1,571.47
    PSP20-20-65
    Automatic Pump Shutoff Device for 208/230V 51-65 FLA 1/3-ph applications
    1 $1,320.99
    PSP20-20-100
    Automatic Pump Shutoff Device for 208/230V 66-100 FLA 1/3-ph applications
    1 $1,751.83
    PSP20-40-10
    Automatic Pump Shutoff Device for 480V .4-10 FLA 3-ph applications
    1 $1,421.17
    PSP20-40-25
    Automatic Pump Shutoff Device for 480V 11-25 FLA 3-ph applications
    1 $1,421.17
    PSP20-40-50
    Automatic Pump Shutoff Device for 480V 26-50 FLA 3-ph applications
    1 $1,571.47
    PSP20-40-65
    Automatic Pump Shutoff Device for 480V 51-65 FLA 3-ph applications
    1 $1,571.47
    PSP20-40-100
    Automatic Pump Shutoff Device for 480V 66-100 FLA 3-ph applications
    1 $1,751.83
    In December 2007 the Virginia Graeme Baker Pool & Spa Safety Act was signed, mandating that, in addition to an approved drain cover, all single main drain public swimming pools and spas must have a secondary protective device such as an automatic pump shut-off system installed.

    The Solution:

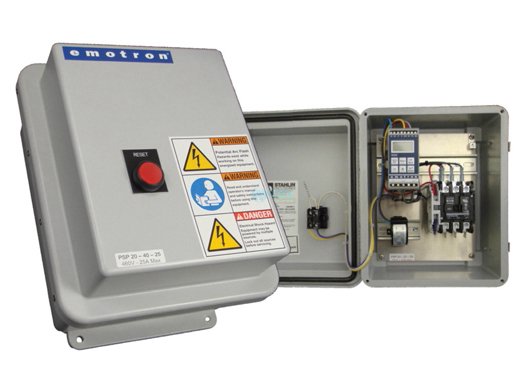

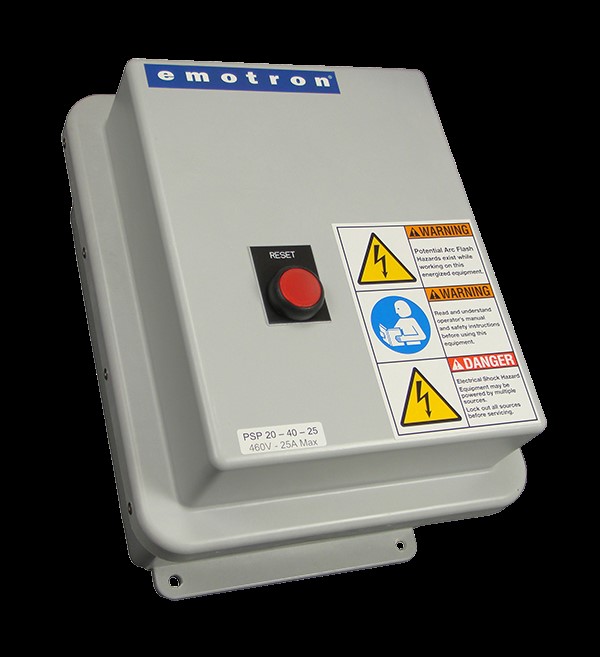

    Use the Emotron PSP20 as a simple, cost effective secondary shut-off device to prevent swimming pool and spa entrapment. Using the existing pump motor as a sensor, the PSP20 will reliably detect a swimmer blocking the suction drain and quickly shut off the pump. The PSP20 accurately monitors motor power to either single or 3-phase pumps.

    CPSC recognized VGB secondary anti-entrapment method
    Technology based on 350,000+ pump monitors installed worldwide
    Simple installation, setup and calibration
    No plumbing required = No future leak issues
    No false tripping - Guaranteed!
    Models for all voltage supplies
    No additional controls or wiring for large 208V/230V or 3 phase pumps
    Compatible with residential pool/spa combos and in-floor cleaners

    Features

    • No bypass required for filter backwash or vacuuming
    • UL approved - Required in many jurisdictions
    • Alarm output
    • No winterizing required
    • Unaffected by hydrostatic relief valves
    • Lowest overall cost of ownership
