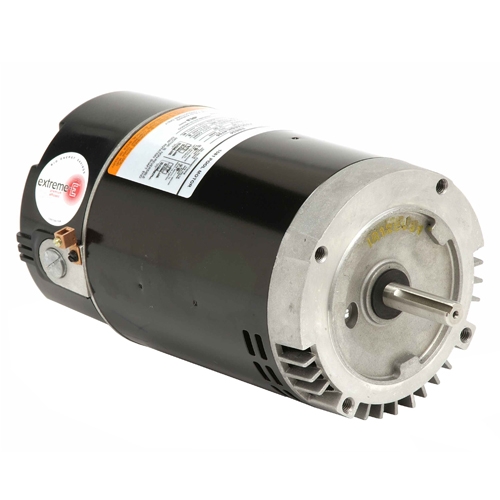

Aqua Shield Replacement Motors

• C-Flange
• 56J Frame, (6.5" diameter)
• Keyed and threaded shaft, (standard efficiency)
• Threaded shaft, (high efficiency)

This family of motors fits the following pumps:

• American - American Eagle
• Astral - 2000 series
• Baker Hydro - Hydron
• Hayward - Super Pump, Super II, Super Pump II, Max-Flo
• ITT Marlow - Argonaut
• Jacuzzi - Plastic, Magnum, Magnum Force
• Pentair/Purex - Hydrotech
• Speck - Speck Pumps
• WMC

The New Aqua-Shield brand of universal replacement motors makes selecting and replacing motors easier than ever. For years, many motor manufacturers have confused professionals and consumers alike by displaying confusing horsepower ratings, service factors, and other confusing specifications - often hiding the True Horsepower rating of a motor.

Tru-Rated Horse Power, (THP) ratings cut through the clutter - and take the confusion out of buying a pool pump motor. Aqua-shield motors help make sure pumps work like new, and energy costs are as low as possible.

Features and Benefits:

• Two Compartment design features a voltage selection switch on all dual voltage models to facilitate installation in either 115 or 230 VAC applications,
• THP Rated
• 50 Degrees Celsius Ambient
• 1081 Design
• Open Drip proof design
• 300 Series stainless steel shaft
• Continuous Duty
• Class B insulation
• Voltage Selection Device (Dual Voltage Only)
• RPM: 3450
• Voltage: 115V/230V
• Single Phase
• Shaft Threads 1/2-20 UNF-2A
