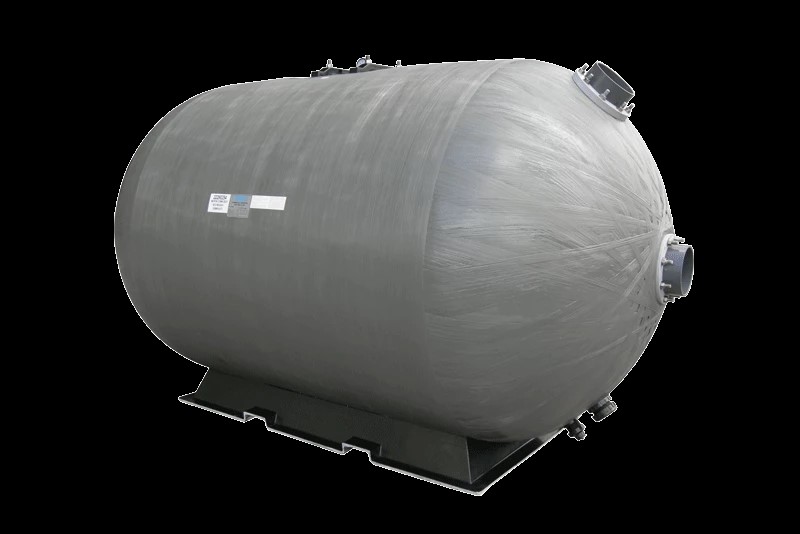

48" Horizontal (Nsf Approved) #

Item #

Elliptical positive sealing manways
Flanged port of up to 10”
Hydraulically balanced distribution and lateral system
Fiberglass wound tank, UV and corrosion resistant
Large stable filter base for stable floor mounting
Manual drain

Know someone who might like this? - Please, feel free to " Tell A Friend "

Item #	Description/Size	Qty Break	Price
2229075L	48"X75" Horiz 4" Flg Conn. Left Mw 22.1sf 58psi (Nsf Approved)	1	$11,326.29
2229075R	48"X75" Horiz 4" Flg Conn. Right Mw 22.1sf 58psi (Nsf Approved)	1	$11,326.29
2229091L	48"X91" Horiz 6" Flg Conn. Left Mw 27.6sf 58psi (Nsf Approved)	1	$13,591.54
2229091R	48"X91" Horiz 6" Flg Conn. Right Mw 27.6sf 58psi (Nsf Approved)	1	$13,591.54
22290106L	48"X106" Horiz 6" Flg Conn. Left Mw 32.4sf 58psi (Nsf Approved)	1	$15,086.61
22290106R	48"X106" Horiz 6" Flg Conn. Right Mw 32.4sf 58psi (Nsf Approved)	1	$15,086.62
22290120R	48"X120" Horiz 6" Flg Conn. Right Mw 37sf 58psi (Nsf Approved)	1	$16,293.54
22290120L	48"X120" Horiz 6" Flg Conn. Left Mw 37sf 58psi (Nsf Approved)	1	$16,293.54

Description
Waterco’s new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter’s hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.
