Item #

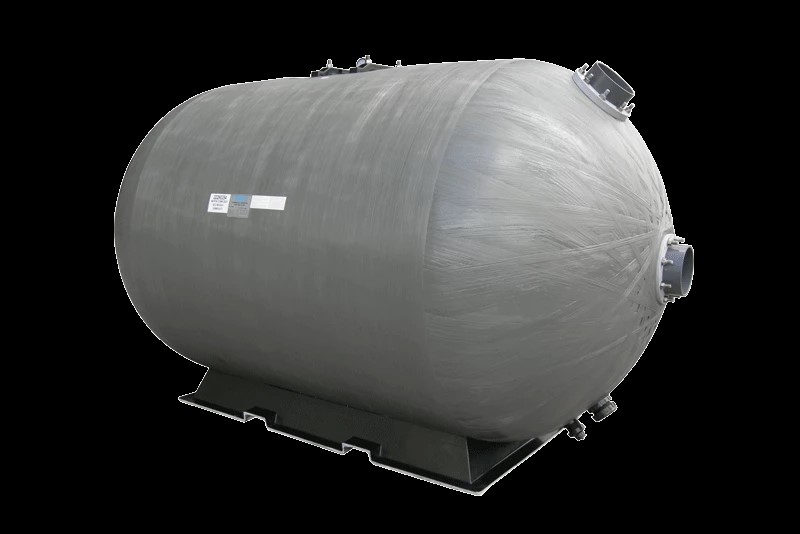

  • Elliptical positive sealing manways
  • Flanged port of up to 10”
  • Hydraulically balanced distribution and lateral system
  • Fiberglass wound tank, UV and corrosion resistant
  • Large stable filter base for stable floor mounting
  • Manual drain
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    22290104LNA
    M2500 Horiz 50" X 88" 4" Flg Conn. Left Mw 27.5sf 58psi (Nsf Approved)
    1 $12,494.60
    22290104RNA
    M2500 Horiz 50" X 88" 4" Flg Conn. Right Mw 27.5sf 58psi (Nsf Approved)
    1 $12,494.60
    22290154LNA
    M3750 Horiz 50" X 127" 6" Flg Conn. Left Mw 38sf 58psi (Nsf Approved)
    1 $18,028.48
    22290154RNA
    M3750 Horiz 50" X 127" 6" Flg Conn. Right Mw 38sf 58psi (Nsf Approved)
    1 $1,803.06
    22290200LNA
    M5000 Horiz 50" X 166" 6" Flg Conn. Left Mw 51sf 58psi (Nsf Approved)
    1 $21,740.22
    22290200RNA
    M5000 Horiz 50" X 166" 6" Flg Conn. Right Mw 51sf 58psi (Nsf Approved)
    1 $21,740.22

    Description

    Waterco’s new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidization of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter’s hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.
