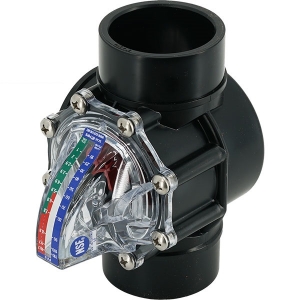

FlowVis is a revolutionary, patented solution for accurate and reliable flow rate measurement in fresh water applications such as swimming pools, spas, fountains, water features, irrigation systems, well water and solar systems. A FlowVis model also exists for Flotation Tanks and where the Specific Gravity has been raised to 1.25 by adding Epsom Salts.
Using a design that is based on mass flow principles, the FlowVis provides many benefits that include:
Ease of installation without the need to have 15x of
straight pipe
Installation flexibility that allows orientation in any position,
e.g., horizontal, vertical or even upside-down
Long life without sticking floats or paddle wheels
Combined Flow Meter and Check Valve in all models
except FV-C-S, FV-C-Saline, FV-3, FV-L-DN80, FV-4, FV-LDN100 and FV-C-HF-S.
The FlowVis has undergone exhaustive testing and calibration to ensure long life, accuracy, and repeatability. No other Flow Meter at this price point is NSF certified or comes remotely close to its +/- 2 GPM accuracy. Note: Accuracy: of +/- 2 GPM from 0 to 100 GPM verified by NSF testing.
Service Kit for FlowVis Tee Body Style and Saddle Body Style Flow Meters
Kit # FV-SK-CAR is compatible with Models: (click to order)
Service Kit includes:
- (1) O-Ring
- (1) Spring
- (1) Spring pulley pivot pin
- (1) Spring pulley to flapper pulley wire
Click to view and download additional resources:
