- 2" Connection
- Self-Priming Feature
- Available with 1.0, 1.5, 2.0, 2.5, 3.0 HP
- Supplied with 1/8in tk. Neoprene gaskets
- 2.25 liter strainer basket
- Single phase performance
- Clear basket lid
- Quick connect barrel unions for UPVC pipe
- High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly
- High performance motor: IP55 rating, Motor shaft 431 grade stainless steel, and Fan cooled Thermal overload protection
- Stable support base
- Hydraulically efficient impeller and diffuser design
- Strong single piece glass filled thermoplastic pump body
- Drain plugs
- Extra large strainer basket -captures debris and protects the impeller
- Motor protection bracket protects the motor from a leaking mechanical seal
- NSF/ANSI Standard 50 Certified

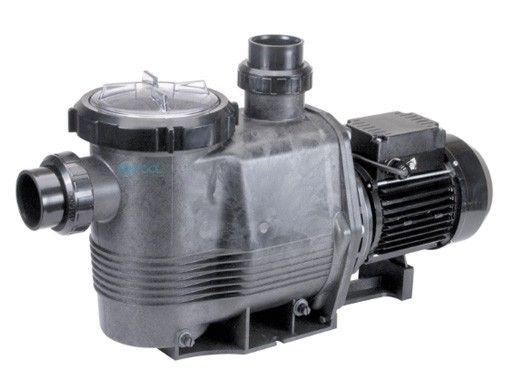

High Performance Pump
Waterco high performance pumps provide the extra power needed to cope with ancillary systems like water features, in floor cleaning, vacuum cleaning and swim/spa jets.
Efficient Impeller and Diffuser Design
The impeller and diffuser design maximizes the hydraulic output of the pump while minimizing turbulence. The efficient hydraulic performance shortens run times and reduces energy consumption leading to lower operating cost.
Engineered Durability
The pump body is manufactured utilizing state of the art engineering plastic molding with a single piece strainer pot and volute for extra strength.
A high grade 316 stainless steel mechanical seal is incorporated for extra protection against corrosion. e.g. from chlorinated water, ozone, iodine, Baquacil, bromine and salt water.
