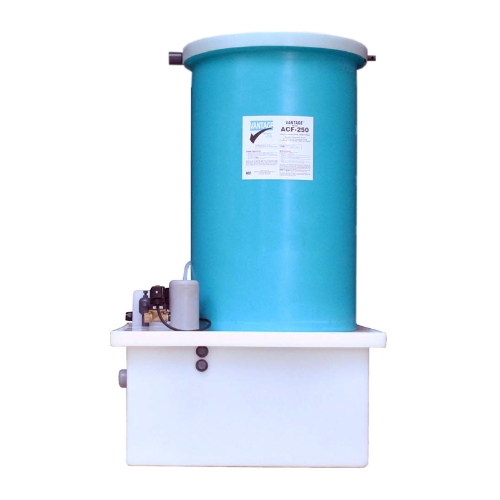

Vantage ACF-250 Cal-Hypo Feeder and Systems

Provides unmatched water quality making it the perfect feeder for large commercial pool operators!

Easily installed and easy to service, the Vantage ACF-250 Calcium Hypochlorite Feeder is designed for the commercial pool operator's convenience. Designed to minimize and simplify the maintenance associated with CalHypo feeders, the robust slip-stream design delivers precise dosing, large capacity feeds with a minimum of care.

3 configurations to choose from:

  • Model ACF-18, complete with installation component kit
  • Model ACF-18 with overflow shut-off, for flooded systems or extra assurance against main circulation system disruption or performance.
  • Model ACF-18 with booseter pump, to assure adequate flows through the system independant of main circulation system performance, skid mounted for ease of instalation.

Features and Specifications:

  • Inlet Flow: 2.0 - 3.5 gpm
  • Outlet Flow: = Inlet Flow
  • Inlet Pressure: 10 - 45 psi
  • Maximum Output: 200 lbs. of Available Cl2 per Day
  • Capacity: 250 lbs. of Vantage� Calcium Hypochlorite Tablets
  • Feeder Height 43.5�
  • Feeder Width 21�
  • Feeder Depth 27�
  • Feeder weight (full) 320 lbs.
  • Feeder weight (empty) 70 lbs.
  • Tubing 5/8� O.D.
  • For Swimming Pool Use Only
  • Recommended Pool Size up to 1,000,000 US Gallons
    Know someone who might like this? - Please, feel free to " Tell A Friend "


    Item # Description/Size Qty Break Price Quantity
    ACF-250
    Vantage Cal-Hypo Tablet Feeder - MODEL ACF-250
    		 1 $3,164.65
    ACF-250S
    Vantage Cal-Hypo Tablet Feeder - Model ACF-250, Skid Mounted System
    		 1 $4,492.30

    The ACF-250 was designed for easy service. Two removable panels on the top and lower tank provide easy access to hose out the basin or remove and clean components. The scrubbing action of the rinse nozzle, combined with the smooth surfaces of the feeder will reduce scale buildup.

    Features

    • For up to 1M gallon pools
    • Runs "clean" - less maintenance
    • Simple, Efficient, Durable
    • Use Vantage Calcium Hypo Tablets only
    • Most parts are interchangeable
    • NSF/ANSI Standard 50 Certified

      REPLACEMENT PARTS

      Part NumberDescription

        Part Description - Part Number
        • Feeder Assembly - Complete ACF-250 Feeder E023250VTG
        • �� Solenoid Valve - P2002209
        • Flow Meter - P2002202
        • In-Line Strainer - P2002203
        • 25� of 5/8� OD Tubing - P2002225
        • Feeder Discharge Assembly (discharge valve body, discharge fitting and locking bolt) - P601204
        • Chlorine Feed Assembly (sieve plate, legs, overflow) - P2501400
        • Float Assembly - P601206
        • Eductor Model 3144 - P2001207
        • Check Valve - P2001208
        • Booster Pump (3/4 hp) - P2001209

      Click to view and download additional resources:
      � Installation and Operating Manual
      � Specification Sheet

      FACTORY SUPPLIED INSTALLATION PARTS

      • 25� � 5/8� Tubing
      • 4 � �� npt x 5/8� tubing adapters
      • 1 - �� In-line strainer
      • 2 - �� solenoid valves
      • Flow Meter

      INSTALLER SUPPLIED PARTS

      Due to the wide variety of installations possible, we can not supply all parts and pieces required for installation. Some commonly available plumbing parts and supplies may need to be supplied by the installer.
